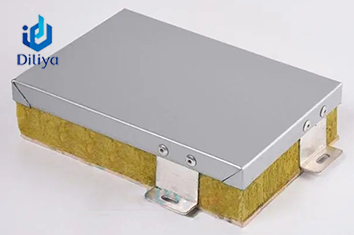

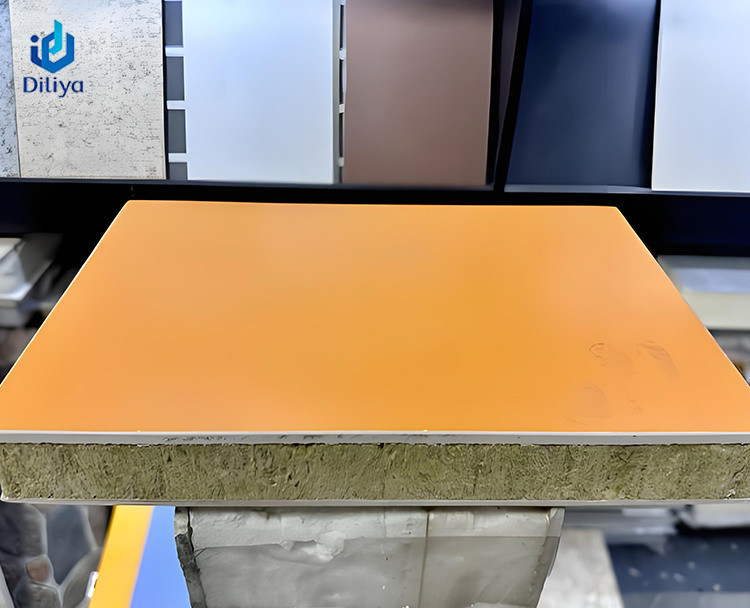

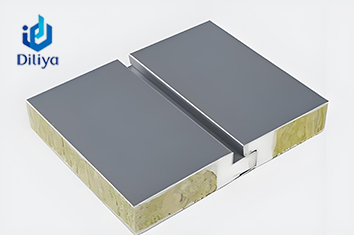

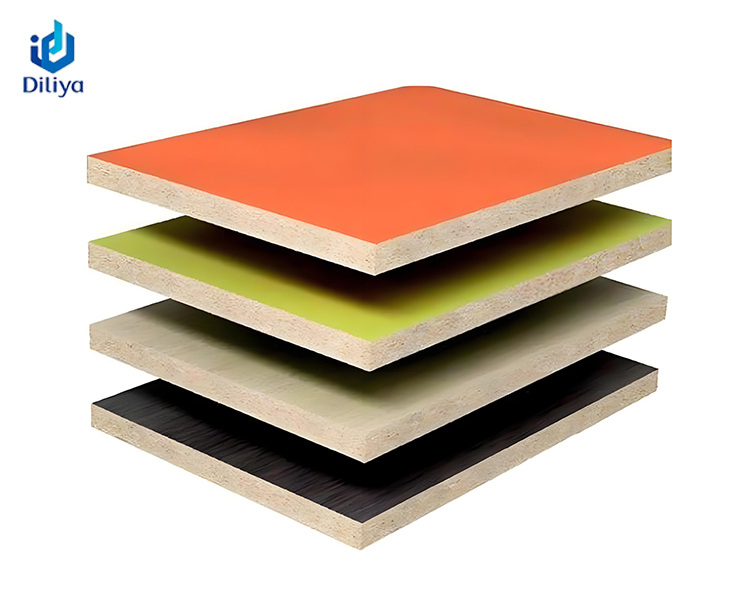

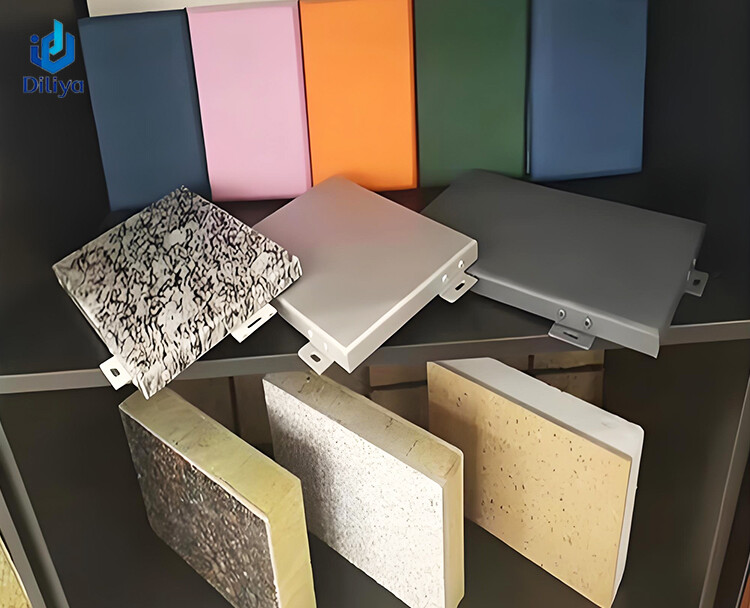

Thermal Insulated Integrated Aluminum Panel is a high-end composite exterior wall material integrating decoration, thermal insulation, heat insulation, waterproofing and fire resistance. Prefabricated in one piece at the factory, it combines an aluminum panel face, high-efficiency insulation core and moisture-resistant backing layer, achieving one-step installation with dual functions. It completely replaces the traditional multi-step wet process of “insulation first, decoration later”, offering curtain wall-grade aesthetics and high energy efficiency — the ideal choice for modern buildings combining energy saving and design.
Face Layer: 3003/5052 aluminum alloy panel, 1.5–4.0mm standard thickness, with PVDF fluorocarbon, powder coating or anodizing; weather-resistant for 20–30 years outdoors.

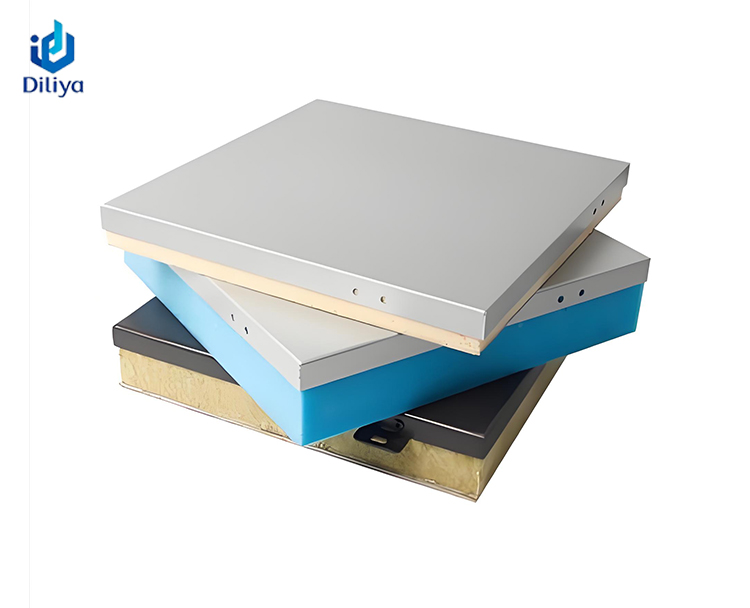

Insulation Core: Optional Class A rock wool, PU, XPS, EPS; thermal conductivity ≤0.024 W/(m·K), fire rating Class A or B1.
Composite Structure: One-piece high-temperature lamination with aluminum foil/fiberglass backing; moisture-proof, anti-aging, no hollowing or peeling.
Sizes: Standard 600×1200mm / 1220×2400mm; insulation thickness 20–100mm customizable.
|
Parameter Item |
Technical Specification |
|
Substrate |
3003/5052 Aluminum Alloy |
|
Face Thickness |
1.5–4.0mm (Customizable) |
|
Insulation Core |
Rock Wool / PU / XPS / EPS |
|
Insulation Thickness |
20–100mm (Customizable) |
|
Thermal Conductivity |
≤0.024 W/(m·K) |
|
Fire Rating |
Class A (Non-combustible) / B1 |
|
Surface Finish |
PVDF / Powder Coating / Wood/Stone Grain |
|
Panel Size |
600×1200mm / 1220×2400mm |
|
Service Life |
20–30 Years (PVDF) |
|
Installation |
Dry Hanging / Adhesive + Anchorage |
Energy Saving & Thermal Insulation: Low thermal conductivity meets 65% energy efficiency; reduces HVAC load, keeping interiors cool in summer and warm in winter.

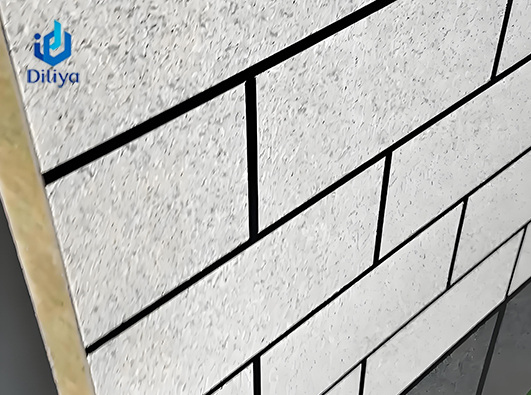

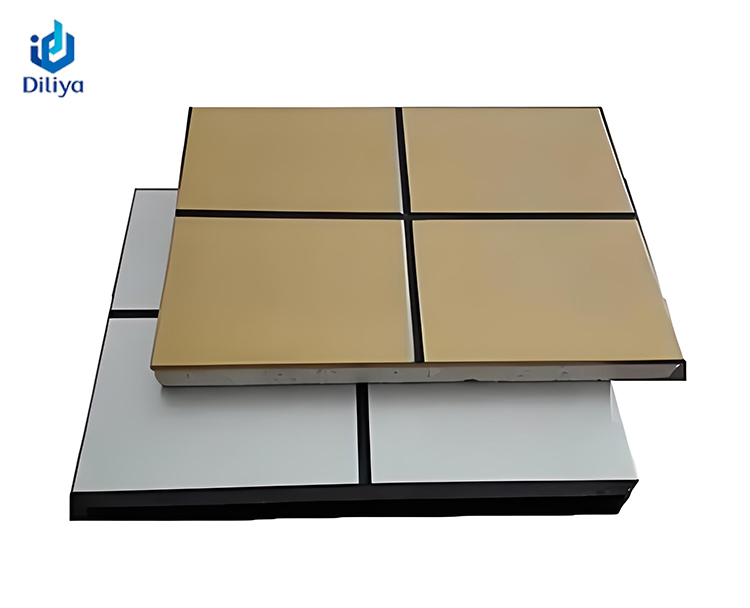

Curtain Wall-Grade Aesthetics: PVDF finish is fade-resistant; stone/wood/metal finishes available — same look as stone curtain wall but lighter and more cost-effective.
Fast Installation & Cost Saving: Factory prefabricated, dry-hung on site; no wet work, construction time cut by over 50%.
Fire Safety & Wind Resistance: Class A fire core; high composite strength, wind resistance ≥3.0kPa, suitable for high-rises.
Waterproof & Durable: Sealed aluminum face + vapor barrier backing; no water penetration or delamination over time.
Eco-Friendly & Recyclable: Formaldehyde-free, non-radioactive; aluminum 100% recyclable, green building compliant.

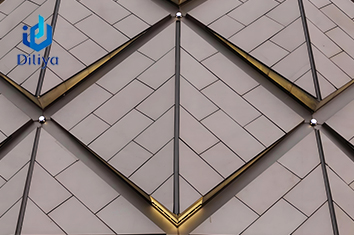

Widely used in commercial complexes, premium office buildings, hotels, cultural landmarks, schools, hospitals, airports, high-speed rail stations, urban renewal projects, high-end residential facades — ideal for projects requiring both curtain wall aesthetics and energy efficiency. Also for interior partitions, ceilings and equipment rooms needing insulation and noise reduction.
Installation & After-sales
All thermal insulated integrated aluminum panels are factory-engineered, CNC-cut and one-piece composite with precise dimensions, flat surface and strong bonding between insulation and aluminum face. Installed via dry hanging or adhesive+anchorage with sealed waterproof joints for system stability. Full customization of thickness, size, color, texture, insulation rating available, including design optimization, joint detailing and on-site technical support. Strict factory quality control ensures stable performance. We support large-volume orders and provide full technical and after-sales service.
Storage & Handling: Stack panels flat with wooden or soft cushions underneath; avoid tilting, heavy pressure or impact to prevent deformation, coating scratches or insulation cracking. Store in a dry, ventilated area away from rain, moisture and corrosives.
Construction Environment: Avoid outdoor work in heavy rain, strong wind, dust or extreme heat. Substrate walls must be solid, dry, flat and free of oil/dust to ensure firm keel and anchor installation.
Installation Standards: Install by layout numbers with uniform joints and flat panels. Do not force or hammer panels; do not alter bracket positions arbitrarily to ensure even loading and vertical alignment.
On-site Processing Prohibition: No on-site cutting, grinding, drilling or welding — it damages the composite structure and waterproof coating, causing delamination, water leakage or peeling. All size adjustments and openings must be factory-prepared.
Waterproof Sealing: Fill panel joints fully with weather-resistant sealant to prevent water ingress. Waterproof edge treatment required at corners, sills and parapets.
Maintenance & Inspection: Clean with water or neutral detergent only; no strong acids/alkalis/solvents. Regularly inspect sealant, brackets and fasteners; repair cracks or looseness promptly.
