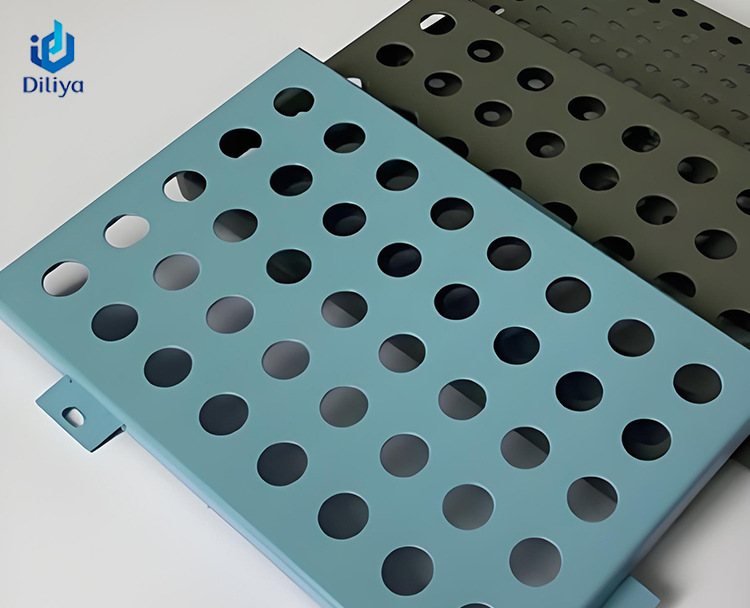

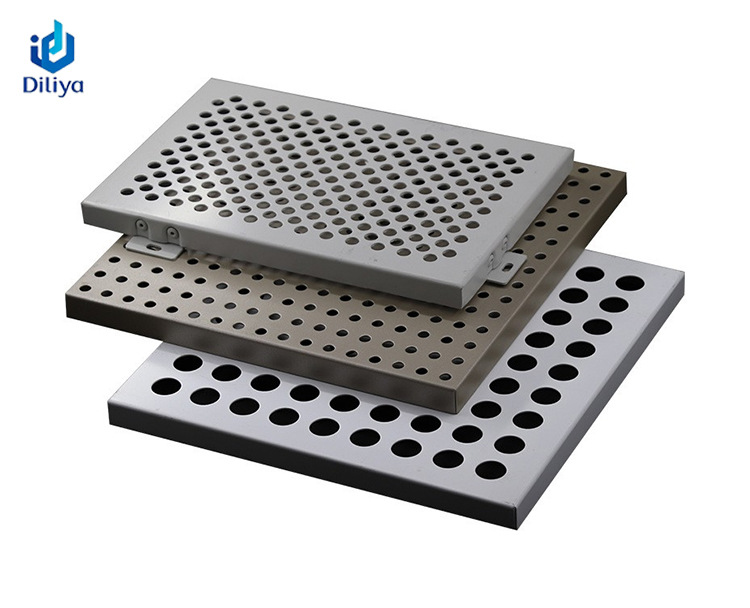

Perforated Aluminum Panel is a high-performance functional curtain wall material integrating ventilation, noise reduction, sun shading and artistic decoration. Made of high-quality aluminum alloy substrate, it is processed through CNC precise perforation, bending forming, structural reinforcement and professional surface coating. Various hole shapes such as round, square, hexagonal, gradient and custom artistic holes are available with uniform aperture and neat arrangement. It effectively breaks the closed and dull visual effect of traditional curtain walls. With excellent ventilation, heat dissipation, sound absorption and weather resistance, it is widely used for exterior and interior artistic decoration, perfectly combining architectural aesthetics and energy saving.
Adopting 3003 anti-rust aluminum alloy or 5052 high-strength aluminum alloy, the panel features stable texture and excellent toughness without cracking or deformation during perforation and bending. The conventional thickness is 1.5mm–4.0mm, supporting custom oversized and special-sized panels. Fully automatic CNC perforation equipment ensures accurate hole spacing and smooth burr-free edges. The open rate is adjustable from 10% to 70%, realizing uniform, gradient, patterned and irregular artistic perforation. Large-size panels are equipped with stiffeners to enhance structural stability. Surface treatments include PVDF fluorocarbon coating, powder coating, anodizing, wood grain, stone grain and matte wire drawing, featuring strong coating adhesion, uniform color and excellent outdoor aging resistance.
|
Parameter Item |
Technical Specification |
|
Substrate |
3003 / 5052 High-quality Aluminum Alloy |
|
Thickness |
1.5mm–4.0mm (Customizable) |
|

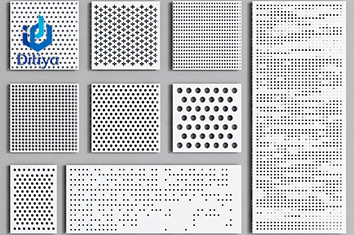

Hole Type |
Round, Square, Hexagonal, Gradient, Custom Pattern |
|
Open Rate |
10%–70% Adjustable |
|
Surface Treatment |
PVDF, Powder Coating, Anodizing, Wood/Stone Grain |
|
Functional Performance |
Ventilation, Heat Dissipation, Sound Absorption, Sun Shading |
|
Service Life |
PVDF: 20–30 Years | Powder Coating: 8–15 Years |
|
Installation |
Standard Dry Hanging Assembly |

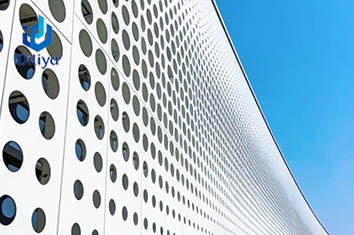

Artistic Light & Shadow Effect: Regular and artistic perforation design brings layered and transparent facade vision. It presents elegant light and shadow changes in the daytime and outstanding lighting atmosphere at night, avoiding the bulky and dull feeling of traditional walls and greatly improving architectural aesthetics.
Ventilation & Energy Saving: Uniform holes form natural air convection, effectively promoting wall heat dissipation, reducing external wall heat accumulation and indoor energy consumption, realizing passive building energy saving.
Sound Absorption & Noise Reduction: Combined with sound-absorbing cotton, it forms an efficient noise reduction structure to absorb environmental noise and reduce echo, ideal for noisy public spaces such as stadiums, stations, subways and exhibition halls.
Stable Structure & Weather Resistance: High-strength substrate ensures structural rigidity after perforation without deformation. The premium coating resists UV, wind, rain and salt spray, maintaining stable color and performance for long-term outdoor use.

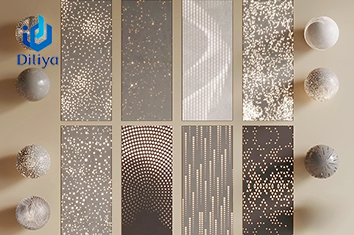

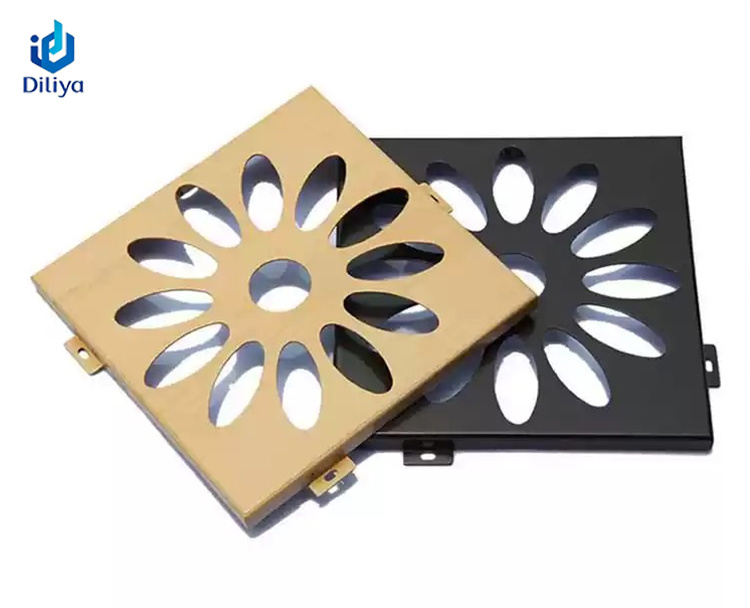

High Customization: Aperture, spacing, open rate, patterns and colors are all customizable. It supports gradient perforation, logo hollowing and artistic patterns to match modern, minimalist and artistic architectural styles.
Lightweight & Eco-friendly: Light weight reduces building load with high safety. Factory prefabrication and dry hanging installation ensure efficient construction and easy maintenance. 100% recyclable, compliant with green building standards.

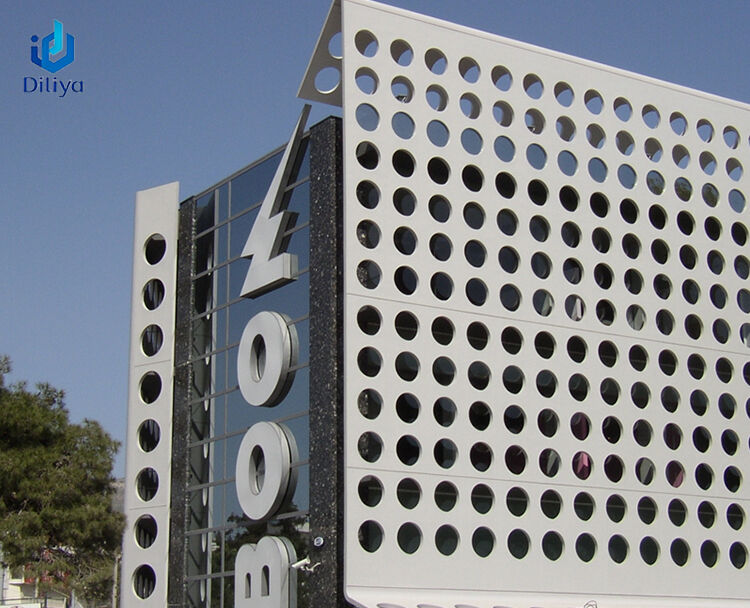

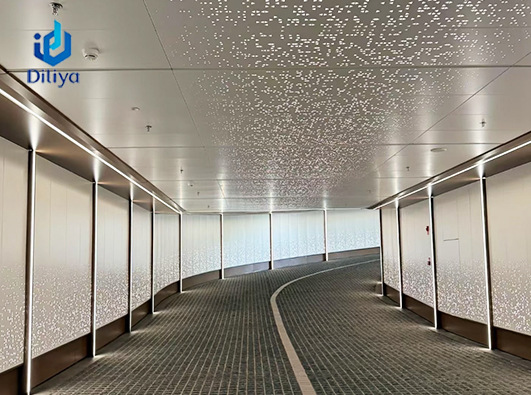

Perforated aluminum panels are widely used in interior and exterior architectural decorations requiring ventilation, noise reduction, light transmission and artistic shaping. Exterior applications: commercial complexes, cultural tourism landmarks, hotel facades, office buildings, stadiums, convention centers, airports, high-speed railway stations, municipal curtain walls and door headers. Interior applications: artistic ceilings, transparent partitions, exhibition walls, corridor passages, elevator decoration, audio-visual rooms and indoor art walls. It is a versatile curtain wall material with perfect combination of functionality and decoration.

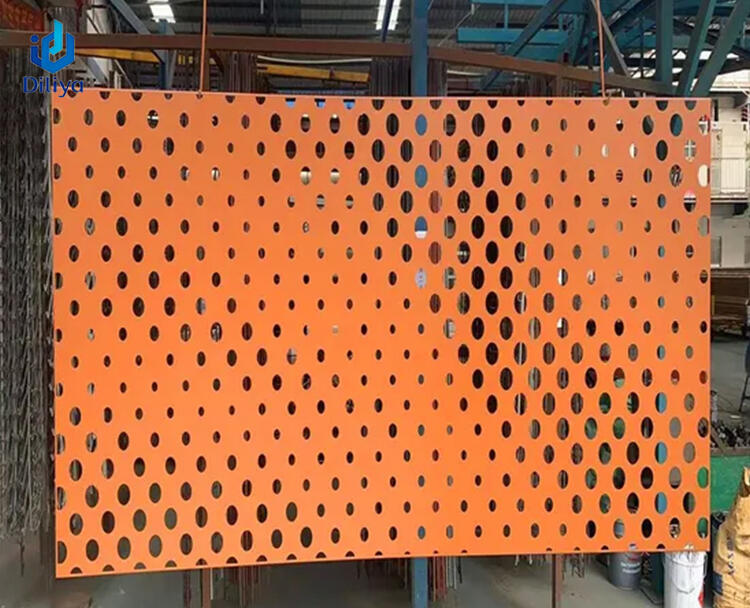

All perforated aluminum panels are factory prefabricated with CNC integrated forming, featuring uniform holes, standard plate shape and accurate dimensions. Adopting standardized dry hanging assembly installation, it ensures flat joints, uniform stress and neat overall facade. Full customization of hole shape, aperture, open rate, thickness, color and pattern is supported, with professional scheme optimization, node closing and on-site technical service available. Strict factory quality inspection guarantees stable performance. We support large-scale batch engineering orders and provide full-process technical and after-sales guarantee.
Storage & Handling: Finished panels shall be stacked flat with soft cushions or wood squares at the bottom. Single-point heavy pressure, vertical placement and collision are prohibited to avoid surface deformation, hole edge damage and paint scratches. The storage area must be dry and ventilated, far away from acid-base, corrosive materials and humid environment.
Construction Environment: Avoid outdoor construction in severe weather such as heavy rain, strong wind, sand dust and high-temperature exposure. Ensure the base surface is dry, solid and free of dust and oil to guarantee firm installation of keels and hangers and prevent loosening and water seepage risks.
Installation Standards: Install in strict accordance with layout numbers to ensure uniform joints and flat panels. Forcible prying and pulling are prohibited, and unauthorized adjustment of hanging points is not allowed to ensure uniform stress and neat facade.
On-site Processing Prohibition: Random on-site cutting, grinding and welding on finished perforated panels are forbidden to prevent damage to hole regularity and protective coating, which may cause deformation, paint peeling, corrosion and color difference. All size adjustment must be completed by factory prefabrication.
Cleaning & Maintenance: Clean only with clean water or neutral detergent. Strong acid, alkali and organic solvents are prohibited. Avoid hard impact on the panel and hole edges, and regularly check fastener tightness to eliminate hidden dangers.
Deformation Adaptation: Reasonable expansion joints shall be reserved for large-area walls to adapt to thermal expansion and contraction, preventing arching, uneven gaps and warping caused by temperature changes.
